Headers for
breadboarding

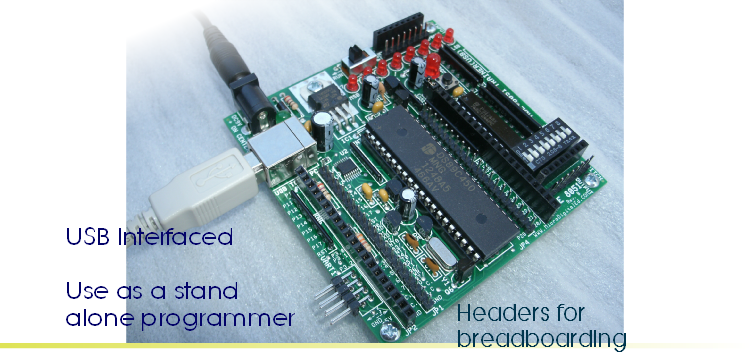

The MDE8051 development board contains a power supply, dual serial ports, a 2nd serial port via a right angle header, 8 LEDs and 8 switches, a reset button, a jumper to pull-up PORT0, a slide switch for programming, and female/male headers to access all ports.
Block Diagram
New and Improved 8051 development tool

MDE-8051

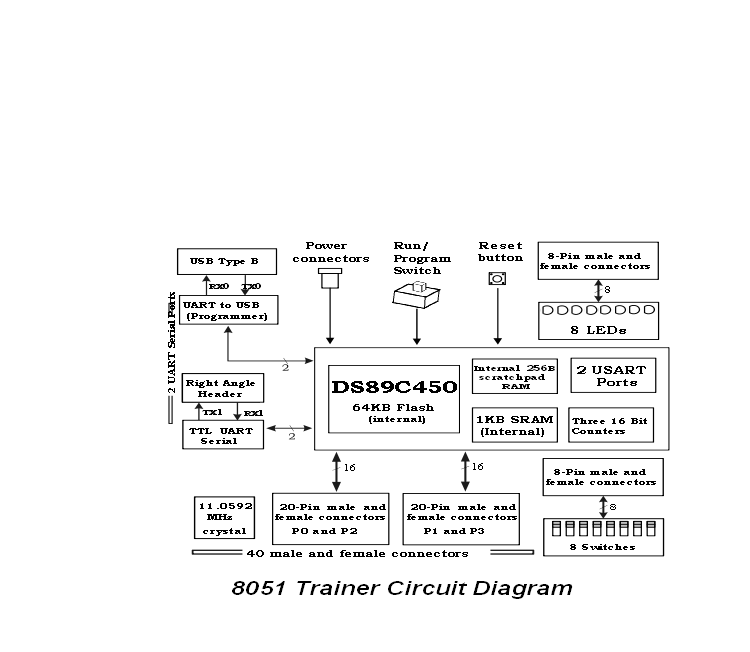

Block Diagram:



(1). Power Input and 5V supply



(2). USB via UART0



(3). UART1



(4). Prog/Run SW



(5). P0 pull up jumper



(6). DS89C450 microcontroller



(7). 8 LED outputs



(8). Reset button



(9). 8 slider switch inputs



See Documents.
